Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient
  • Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient
Место происхождения Шэньчжэнь, Китай
Фирменное наименование Canroon
Сертификация CE; ISO9001:2008
Номер модели CR2100
Количество мин заказа 1 набор
Цена FOB
Упаковывая детали Деревянный корпус
Время доставки в течение 7 дней если доступный в запасе
Условия оплаты L/C, T/T, Western Union, Moneygram
Поставка способности 500 комплектов в месяц
Подробная информация о продукте
Власть 10-50kw, (смогите поставить 10-300kw) Частота промежуточная частота, частота коротковолнового диапазона
Бренд Canroon, изготовитель Китая ведущий Упаковка Деревянный корпус
Перевозки воздух, срочный, море, по мере того как вы требуете Индукционный нагрев Igbt
Схема управление вычислительной цепи Дизайн Модульный дизайн
Приложение паять индукции, твердеть, термическая обработка металла, etc Подходящие металлы медь, латунь, сталь, алюминий, утюг, etc
Характер продукции

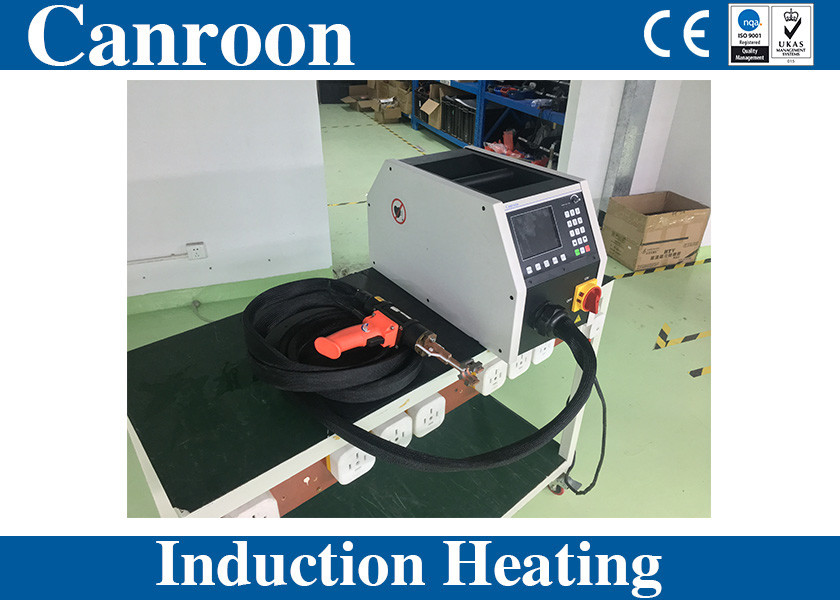

Water Cooling High Frequency Portable Induction Brazing Equipment





Brief introduction of Canroon water cooling high frequency portable induction brazing equipment:





CR2100 series induction brazing equipment, designed with digital circuit and modular design, equipped with LCD display, bring you advanced system with reliability, and high efficiency.



for portable type, machine is small in size, light in weight, water cooling induction cable, HHT/handheld coaxial transformer for easy handle and operation, for the inductor, we can customize it according to your workpiece.



Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient



Application details:



Materials:

All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.

Applications:

Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.

Workpieces:

<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.

<> Heat exchanger: copper tube;

<> Automobile die;

<> Crank shaft;

<> Oil&gas pipe.



see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, copper plate, brass/slip ring, etc

Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient



Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient

Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient



Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient

Technical Parameters of portable high frequency induction hardening machine:



Model Rated input voltage & frequency Rated input power Rated input current Output frequency Cooling water pressure / flow rate Dimension
CR2100-010B-14TW1 3-phase
/400V
(±20%)
50/60Hz		 10KVA 15A 10~40KHZ

4~6 bar

≥12L/min

L: 581mm

W: 283mm

H: 334mm
CR2100-015B-14TW1 15KVA 22A
CR2100-020B-14TW1 20KVA 30A
CR2100-025B-14TW1 25KVA 37A

4~6 bar

≥19L/min
CR2100-030B-14TW1 30KVA 45A
CR2100-035B-14TW1 35KVA 53A
CR2100-040B-14TW1 40KVA 60A
CR2100-050B-14TW1 50KVA

75A








Product features:



1. High efficient: thermoelectric conversion efficieny: >85%;



2. Enviromental friendly: zero pollution, zero discharge;



3. Intelligent: PID temperature closed-loop control, precise temperature control;



4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.



5. Operation interface: humanized MMI, chinese/ English available;



6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;



7. Automation integration: Quickly and easily integrated into automated production lines;



8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
